Description

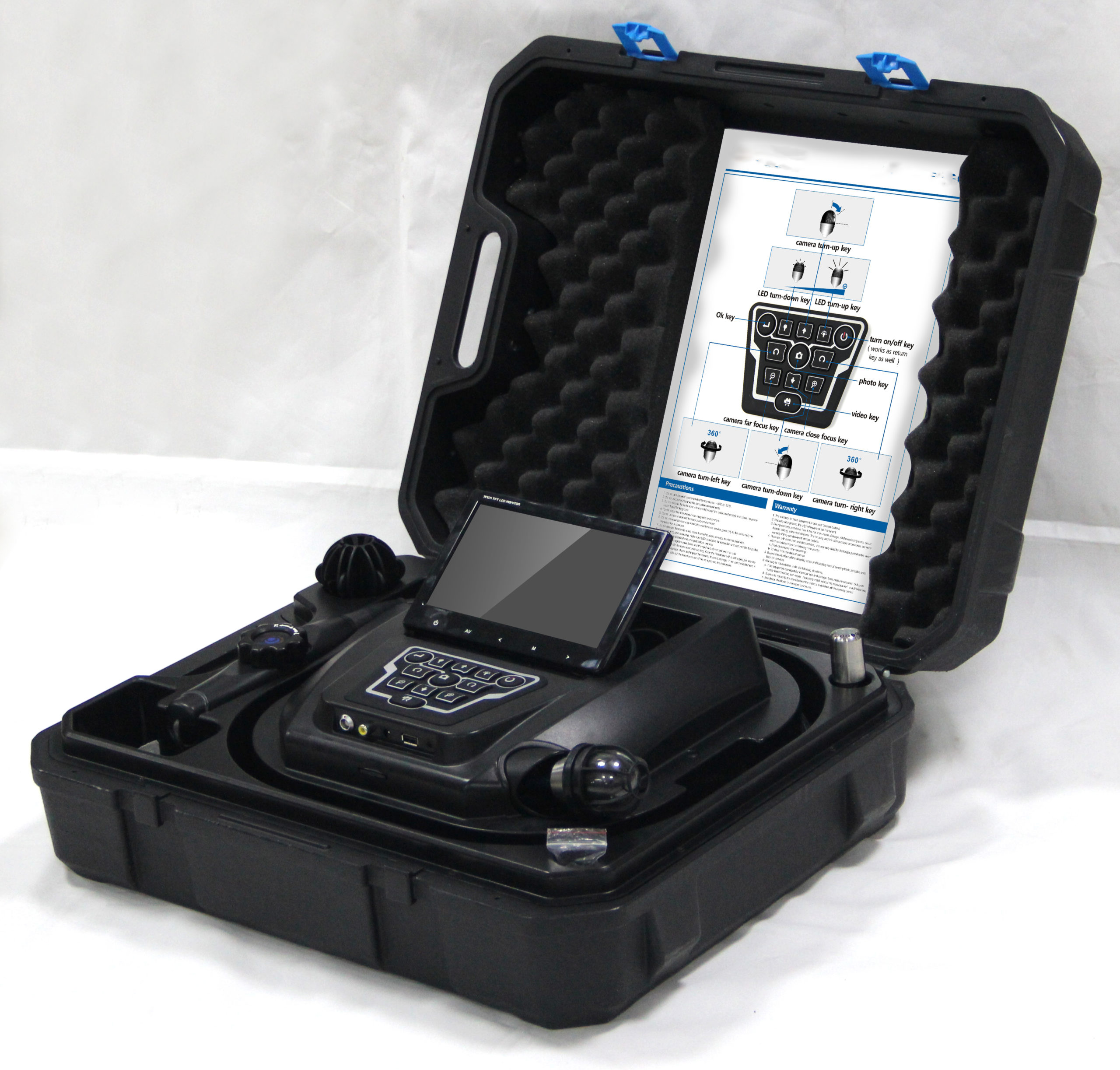

The JP-40 is a 100 foot, 5.5 diameter cable high resolution pipe inspection camera that offers the flexibility and durability required in today’s pipe inspections. The unit is rechargeable LI-Ion battery operated with approx. 6 hour lifetime. The charge is 110V or 220V. Live images are easily seen on the 7” LCD monitor and captured still or video to the onboard SD card. The unit comes complete with 2 cameras 40mm 360 degree view and a 24mm wide angle forward view. All are illuminated with adjustable high intensity LED lighting. The 40mm and 24mm cameras are IP67. Centering devices, video output cable to interface to a larger monitor, charger and rugged case are standard features.
Specifications
- Cable length: 30m
- Cable dia: 5.5mm
- Cable material: High strength fiberglass
- Ingress protection: IP67
- LCD monitor: 7 inch LCD
- Resoultion: 800*480
- Display frame rate: 30l/s
- Working temperature: -10C – 50C
- Storage temperature: -10C – 50C
- Integrated Instrument Case
- Connection cable: 1.5m
- Brightness control: Manual Infinite adjustment
- Video output: Manual selection, NTSC/PAL output
- Video input: Automatic Identification NTSC/PAL S terminal
- Storage: 8GB SD card, 32G is an option
- Power adapter: 100-240-50/60HZ 12V/1A
- Lithium-ion battery: 11.1V 70000MAH
- Charge time: 8 hours
- Battery working life: More than 6 hours
- Image format: JPEG 640*480
- Image manipulation: 3 times image manipulation
- Video format: ASF 640*480
- Language: (Chinese/English/other language etc.) 14 languages
- Working temperature: -10C – 50C
- Storage temperature: -10C – 50C
- Ingress protection: IP64
- Digital meter counter: Yes
- Meter resolution: 0.05m
- Meter maximum error: 5% of the reading
Color rotation camera:
- Camera dia: 40mm
- Camera length: 60mm
- Pixels: 44,000
- Illumination: 12 intensive LEDs
- Housing material: Stainless Steel
- Tiltable: 180
- Pan: 360
- Manual focus: Yes
- Image sensor: CMOS 1/4
- Ingress protection: IP67
- Water resistant: 1m
Wide-angle direct-view camera
- Camera dia: 24mm
- Camera length: 42mm
- Pixels: 42,000
- Illumination: 12 high light LEDs
- Housing material: Stainless Steel
- FOV: >100
- Image Sensor: CMOS 1/4
- DOF: 25mm
- Waterproof: IP67
- Water resistant: 1m
Two-way articulation handle
- Camera dia: 8mm
- Camera length: 20mm
- Pixels: 44,000
- Illumination: High Light LED
- FOV >90
- CMOS 1/4
- DOV: 25mm
- Ingress protection: IP64/IP67
- Cable material: Stainless steel wire tungsten wire braided
- Cable dia: 8mm
- Cable length: 3m
- Articulation: 2-way
- Articulation degree: >120
- Articulation control method: Manual rotation handle
