MACHIDA 3mm Small Format Video Probe Kit

$0.00

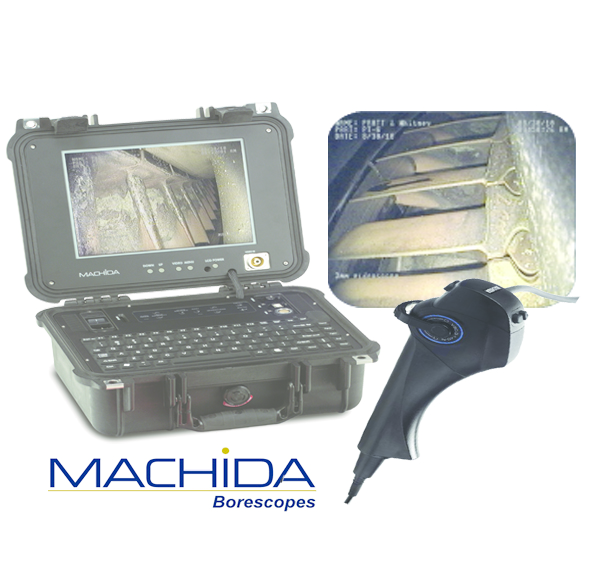

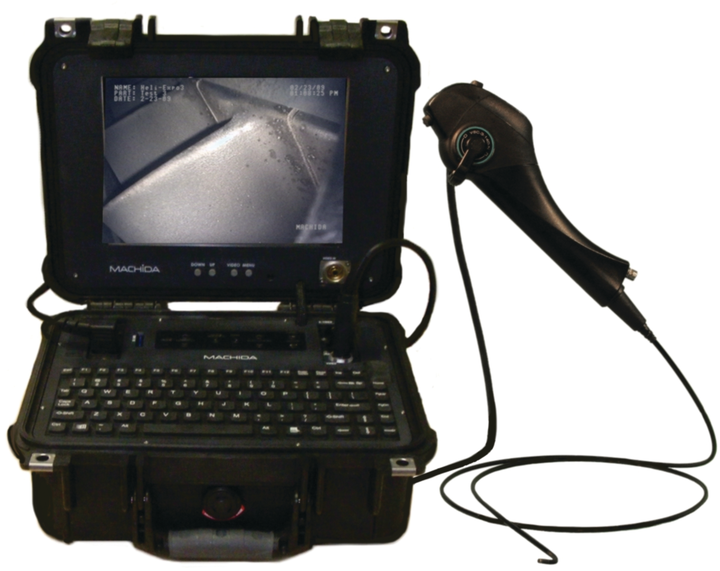

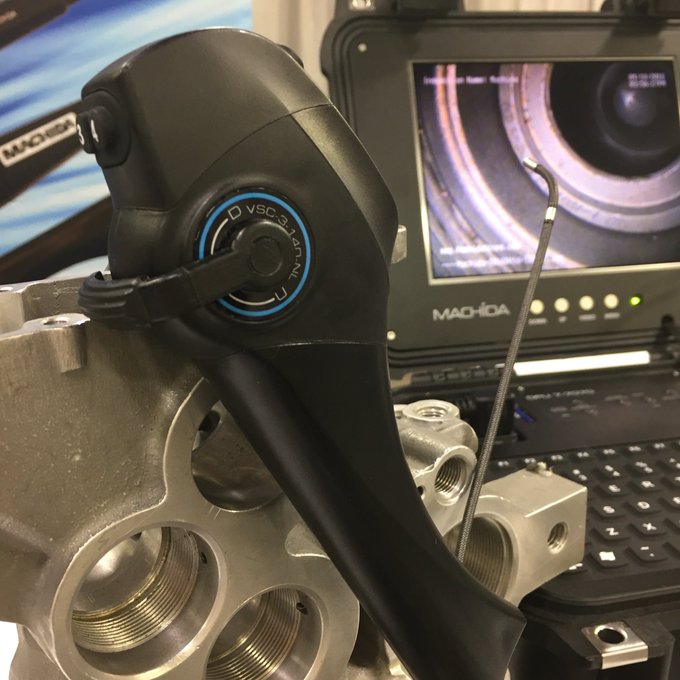

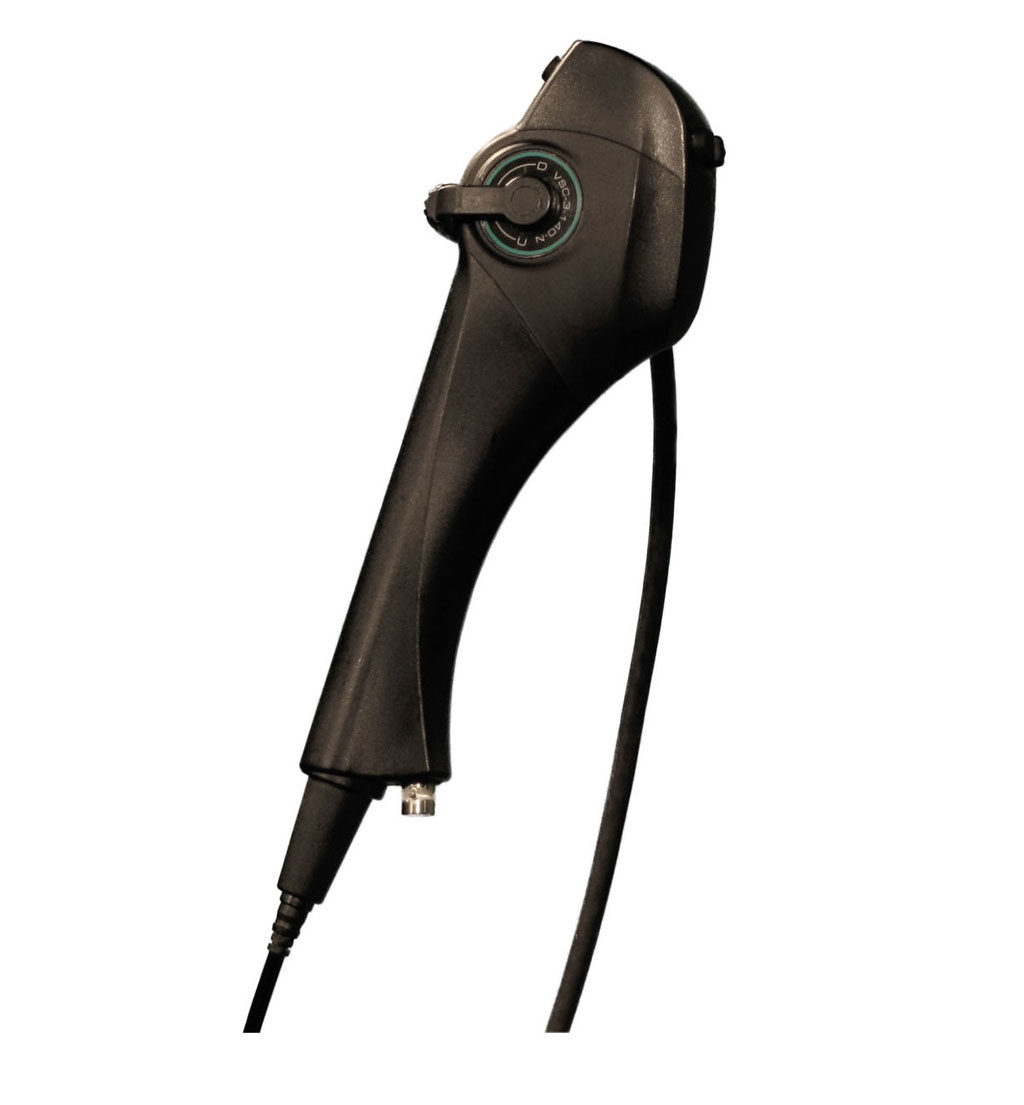

Smallest video probe in the world. The JVPC-3-140P provides the highest resolution CCD chip in the smallest diameter video probe, 2.4 & 3.2mm articulating, at a very affordable price. Durable Teflon scope sheathing and built into a Pelican case provides the ultimate durable solution. The processor captures single images to a SD card with full size keyboard for documentation capabilities to the images. Connects to a computer for full video capture.

SKU: JME-MACHIDA-SF-VPK-3MM Categories: ,

Description

Smallest video probe in the world. The JVPC-3-140P provides the highest resolution CCD chip in the smallest diameter video probe ,2.4 & 3.2mm articulating, at a very affordable price, durable Teflon scope sheathing and built into a Pelican case provides the ultimate durable solution. The processor captures single images to a SD card with full size keyboard for documentation capabilities to the images. Connects to a computer for full video capture.

  • Full Screen 10.4 inch display
  • Light weight and durable
  • Portable Compact Pelican Case
  • Gain Control and Brightness Control
  • Zoom Feature
  • Capture video and still images
  • Outputs S-Video  LED Control Light
  • RCA input for LCD panel
  • Portable Image Archiving
  • Programmable Settings
  • Picture in Picture Freeze
  • SC Card for Image Storage
  • Build in Keyboard

Specifications

Model: VSC-3-140-N(P)

  • Programmable Settings
  • Automatic Focus
  • Automatic Light
  • Full Screen Presentation
  • Gain Control
  • Dynamic HD Image Enhancement
  • One-Touch, Portable SD Card Archiving
  • Archived Image Review/Playback
  • Image Freeze with Picture-in-Picture
  • White Balance Control
  • Screen Brightness Control
  • Light Intensity Controls
  • Image Orientation Control

Specifications:

  • Working Length: 140cm
  • Outer Diameter: 3mm
  • Angulation: Up/Down 130°
  • Depth of View: 3mm-50mm
  • Field of View: Straight 110°
  • Image Sensor: 1/10 Color CCD
  • Covering: Choice of Polyurethane (N) or Impregnated Steel Mesh (NP)

Applications

Aviation inspection

industrial inspection

petrochemical inspection

pharmaceutical inspection
