VPI+ 3.9mm 6mm 8mm portable video probe borescope

VPI+ 3.9mm 6mm 8mm portable video probe borescope

Name: VPI+ 3.9mm 6mm 8mm portable video probe borescope
SKU: JME-VPI-PVP-3.9MM
Availability: InStock

$0.00

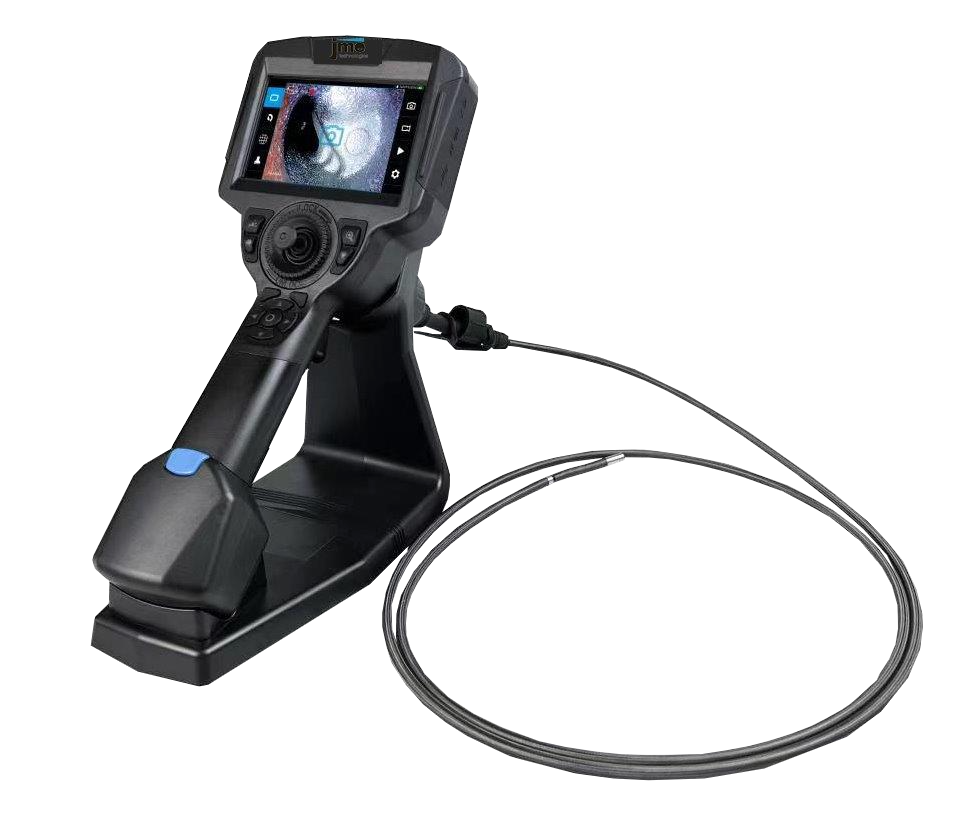

True HD Portable Video Probe. 2.0mm 3.9mm, 6mm or 8.4mm diameter, 1.5m length scope with full 4 way servo motor joystick controlled articulation. 5” HD touch screen monitor captures HD single image and video to 64GB on board SD card. Built in character generator for image capture identification. HDMI Output. Measurement grid overlay for measurements with on screen known value. 6 hour lithium Ion battery.

Adjustable LED Lighting. Interchangeable scopes can be added to change diameter, lengths, 90 degree view or for instant repair exchange. Includes SD card reader, heavy duty carrying case, or optional Pelican case. Full 2-year parts and labor warranty. 2.0mm 2.4mm 2.8mm 3.9mm 6mm 8mm and 90 degree interchangeable scope options.

SKU: JME-VPI-PVP-3.9MM Category: Video Probes

Description

Our VPI’s Video Probe’s Upgraded model. True HD Portable Video Probe with touch screen monitor. 6mm diameter, 1.5m length scope with full 4 way joystick controlled articulation. 5” HD monitor captures HD single image and video to 64GB on board SD card. Built in character generator for image capture identification. HDMI Output. Measurement grid overlay for measurements with on screen known value. 6 hour lithium Ion battery.

Up to 2 Million Pixels. Adjustable LED Lighting. Interchangeable scopes can be added to change diameter, lengths, 90 degree view or for instant repair exchange. Includes SD card reader, heavy duty carrying case, or optional Pelican case. Full 2-year parts and labor warranty. 2.0mm 2.4mm 2.8mm 3.9mm 6mm 8mm and 90 degree interchangeable scope options.

Specifications

SPECIFICATIONS

Diameter: 3.9mm or 6.0mm or 8.4mm
Material: Titanium Alloy
Waterproof: IP67
Image sensor: CMOS
FNO: 3.9mm – 3.5
FNO: 6.0mm & 8.4mm = 4.5
Illimuniation: High Intensity LED
Length: 15mm
Pixels: 1,000,000
FOV: ≥120°
DOF: 3.9mm – 8-80mm
DOF: 6.0mm & 8.4mm – 5-50mm/15-infinity
FPS: 30
90° Probe
Temperature Sensing
Length: 2m/3.5m
Length for 8.4mm is 2m/3.5m/6m
Bending Angle: ≥120° 4 way (360°)
Operation: Manual Joystick
Contrast: 900:01:00
Probe Interchangeability: Yes
Brightness: 600CD/m²
LCD Size: 5 inches
Battery: 3.7V/6000MAH
Material of Controller: ABS
Working time: More than 4 hours
Resolution: 1200*720
Charging Time: 5 hours
AC Input: AC 100-240V 50/60 Hz 0.35A
AC Output: 5V 2A
High Intensity LED: Manual 5 Light Levels
Auxiliary light life: 100,000 Hours
Memory: Up to 32 GB SD Card
Built in Microphone: Wifi Video Streaming
Real Time 5 level and 3x magnification Still and Video Capture
Software Updates: USB MINI B Interface
Photo video Storage: View/delete media
Video Output: HDMI & AV Output
Date/time settings: 14 languages
Photo/Video: JPEG/AVI
Multitask Operating system and Menu Drive: SD Card Formatting
Operating temperature: -10°-50°C

Applications

JME Technologies borescopes are used daily by many of the world’s largest air carriers to support required aircraft maintenance and inspection programs. Our Richard Wolf borescopes, blending scopes, boroblend products, scope kits, and thousands of rigid scopes in operation play a critical role in maintaining engine integrity and performance.

These tools are relied upon in high-stakes environments where precision and reliability are essential. Technicians use JME equipment to inspect, evaluate, and perform blending repairs on aircraft engines, helping ensure compliance with strict aviation standards while minimizing downtime and operational costs.

In addition to equipment, JME supports these applications with repair, replacement, and inspection services. This includes fast turnaround on repairs, overnight shipment of critical spare parts, and emergency onsite inspection services throughout the greater Chicago area and Midwest region.
